PCB Fabrication
●Stable

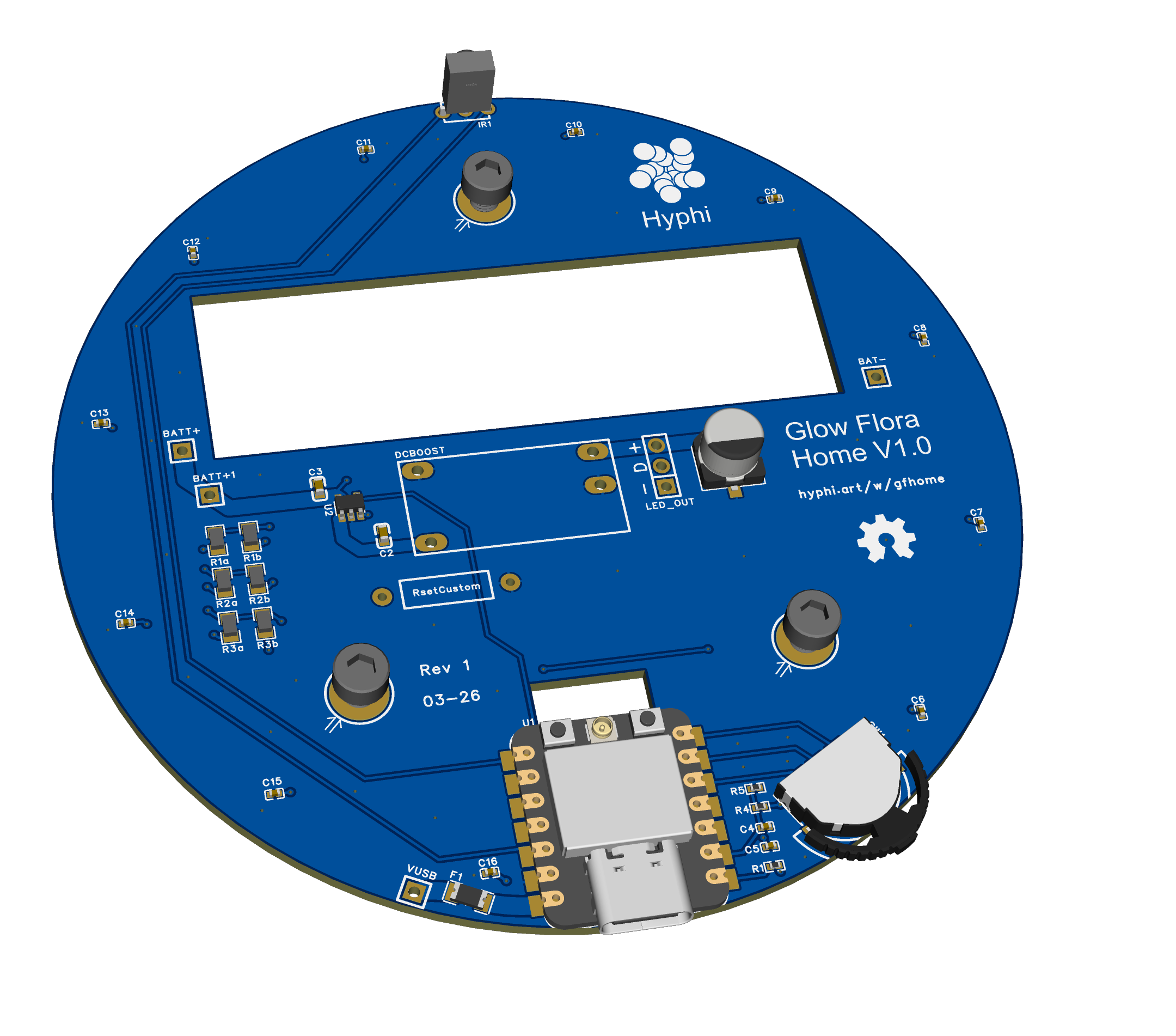

Hyphi PCBs are manufactured at JLCPCB with SMT assembly. This page covers the settings and export workflow used for GlowFlora boards.
JLCPCB Settings
| Parameter | Value |
|---|---|
| Layers | 2 |
| PCB Color | Black |
| Surface finish | ENIG (gold) — recommended for longevity |
| Copper weight | 1 oz |
| Min hole size | 0.3mm |
| SMT Assembly | Yes — JLCPCB economic SMT |
EasyEDA → JLCPCB Export Workflow
- EasyEDA → File → Export → PCB → Gerber (RS-274X)
- Export BOM (File → Export → BOM) as CSV
- Export CPL (Component Placement List) as CSV
- Upload Gerber zip to jlcpcb.com
- Enable SMT Assembly, upload BOM + CPL
- Review component matches — fix any unmatched parts manually
- Confirm 3D preview before ordering
Design Rules
JLCPCB economic SMT constraints to keep in mind:
| Rule | Minimum |
|---|---|
| Trace width | 0.1mm (preferred: 0.2mm+) |
| Via diameter | 0.5mm |
| Via hole | 0.3mm |
| Pad to pad clearance | 0.1mm |
| Smallest SMT package | 0402 (preferred for hand rework: 0603+) |
0402 rework
GlowFlora Clip uses 0402 passives for density. These are not hand-solderable without a hot air station. If you're building from bare boards, source 0603 equivalents and modify the footprint, or use the JLCPCB assembled version.
